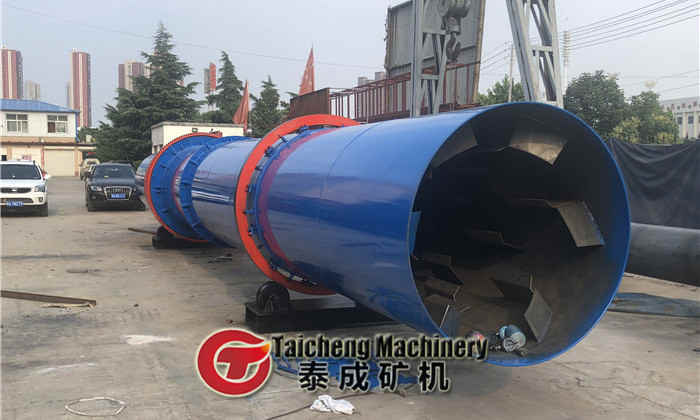

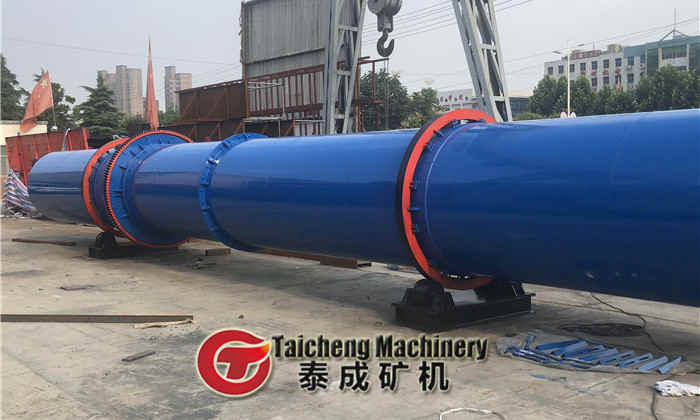

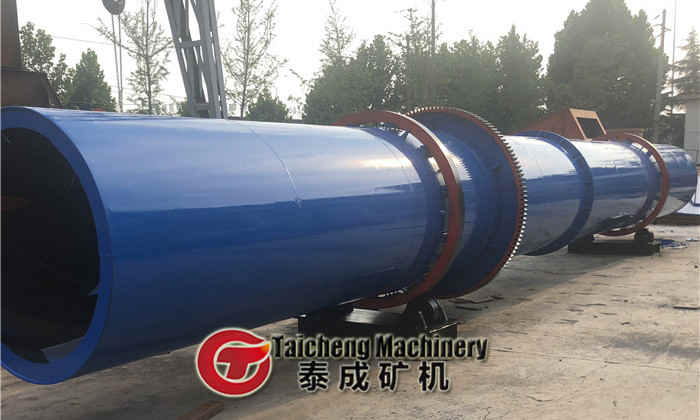

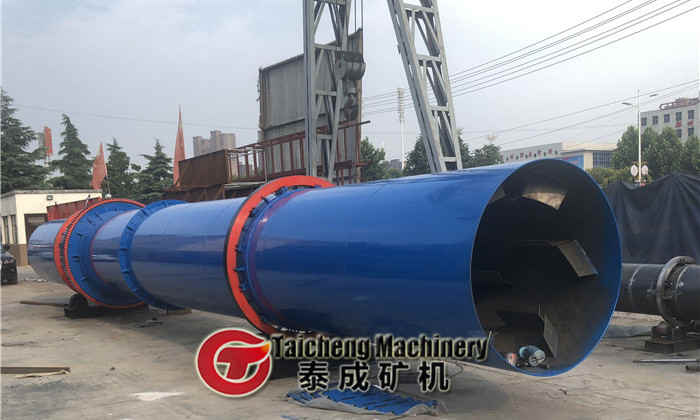

Sand Rotary dryer

Capacity 1-100t/h
Drying : sand , silica sand , river sand , stone
Heat source: coal wood gas diesel or others

 Introduction
The sand drying plant of Taicheng cmpany have exported to EU . With the CE certificate
If your coal moisture is 15-40% , Final moisture can meet your requirement .(5-20% ,as clients' requirement )Capacity : can 1-50t/h according to your moisture .

 Application

Sand ,river sand dryer ,sea sand dryer ,yellow sand dryer ,silica sand dryer .etc.
Working Principle

The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.

Structure

    The water washing coal drying plant is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Charcteristics  :

1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.

2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .

3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .

4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .

5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse

Technical Parameter:

Model(mm)

Capacity

(t/h)

Main motor

(kw)

Rotate speed

(r/min)

Tilt(%)

The max. intake air temperature

(℃)

600x60000.3-1.0
3
3-8
3-5700-800
800x80000.5-1.543-83-5700-800
800x100000.8-1.75.53-83-5700-800
1000x100001-27.53-83-5700-800
1200x120001.5-2.5113-83-5700-800
1500x120002-4153-83-5700-800
1500x150002.5-5153-83-5700-800
1800x180006-1018.53-83-5700-800
2200x1500010-15223-83-5700-800
2200x2000012-16303-83-5700-800
2400x2000018-22373-83-5700-800
2800x2000020-30453-83-5700-800
3000x2000030-40553-83-5700-800
3200x2000035-45753-83-5700-800
3600x2000040-50903-83-5700-800
3600x2500050-801103-83-5700-800
